7-SEG PCB alignment #1

New Issue
Open
opened 2025-05-27 23:58:21 +00:00 by drake · 0 comments
drake commented 2025-05-27 23:58:21 +00:00
Owner
Copy Link
Copy Source

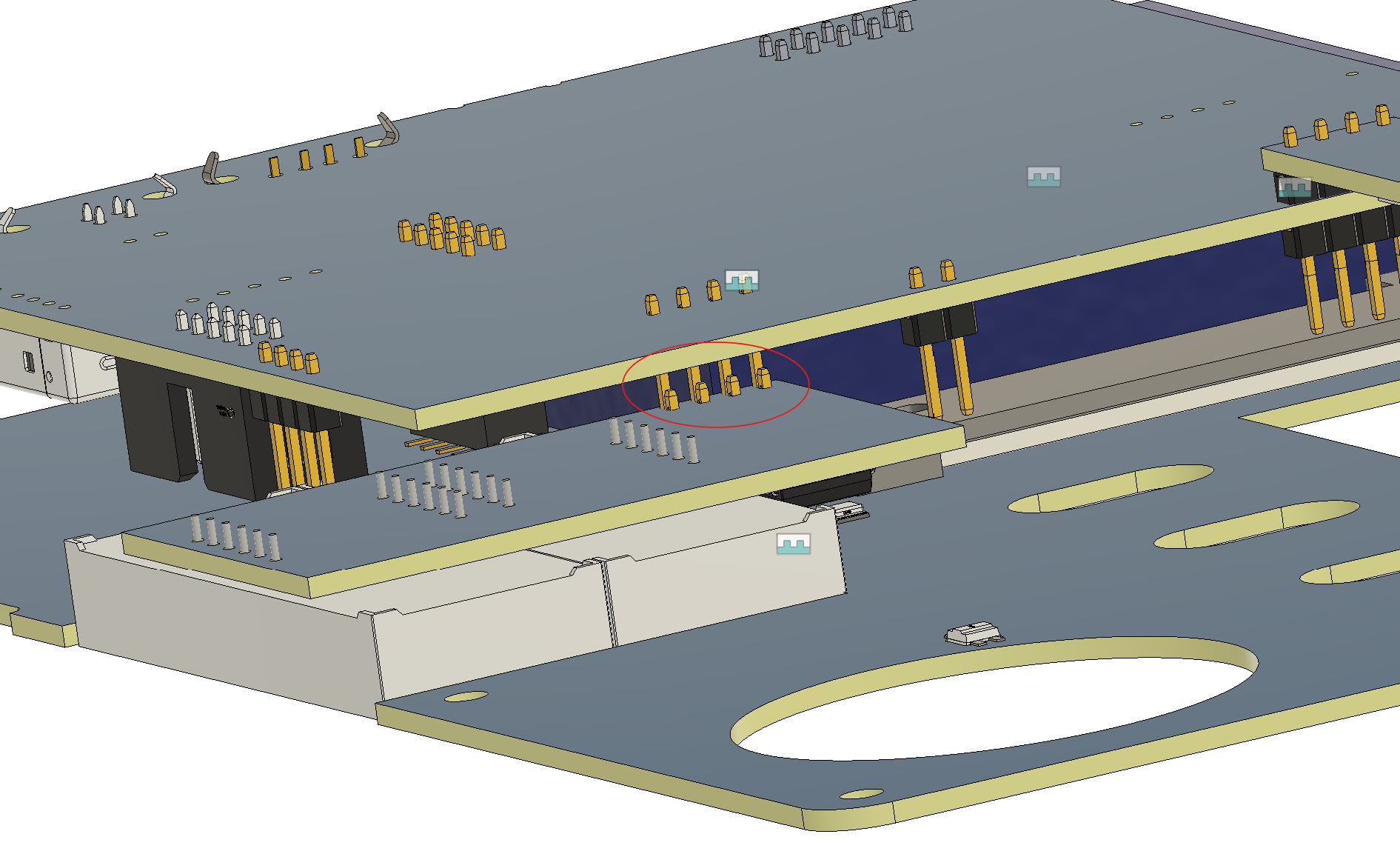

The pin headers on the 7-Segment board do not align with both the control board pcb headers and the window in the facade board.

The pin headers on the 7-Segment board do not align with both the control board pcb headers and the window in the facade board.
7-segment header alignment.png
230 KiB
7-segment header alignment.png
